NEUROPILOT®Fine-positioning for intraventricular neuroendoscopic and endoscope-assisted surgery

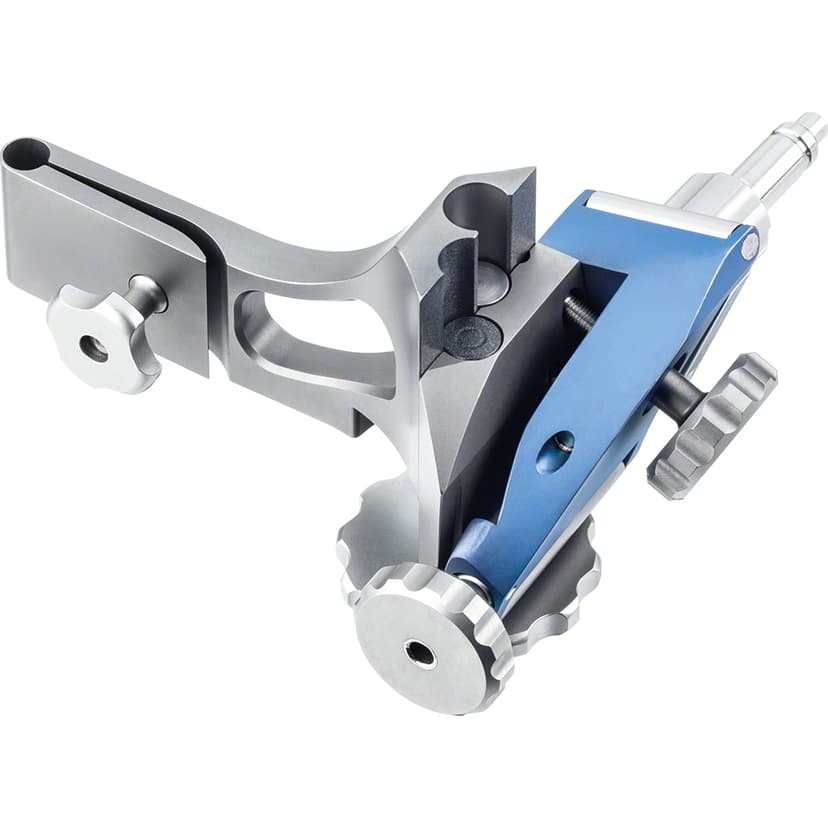

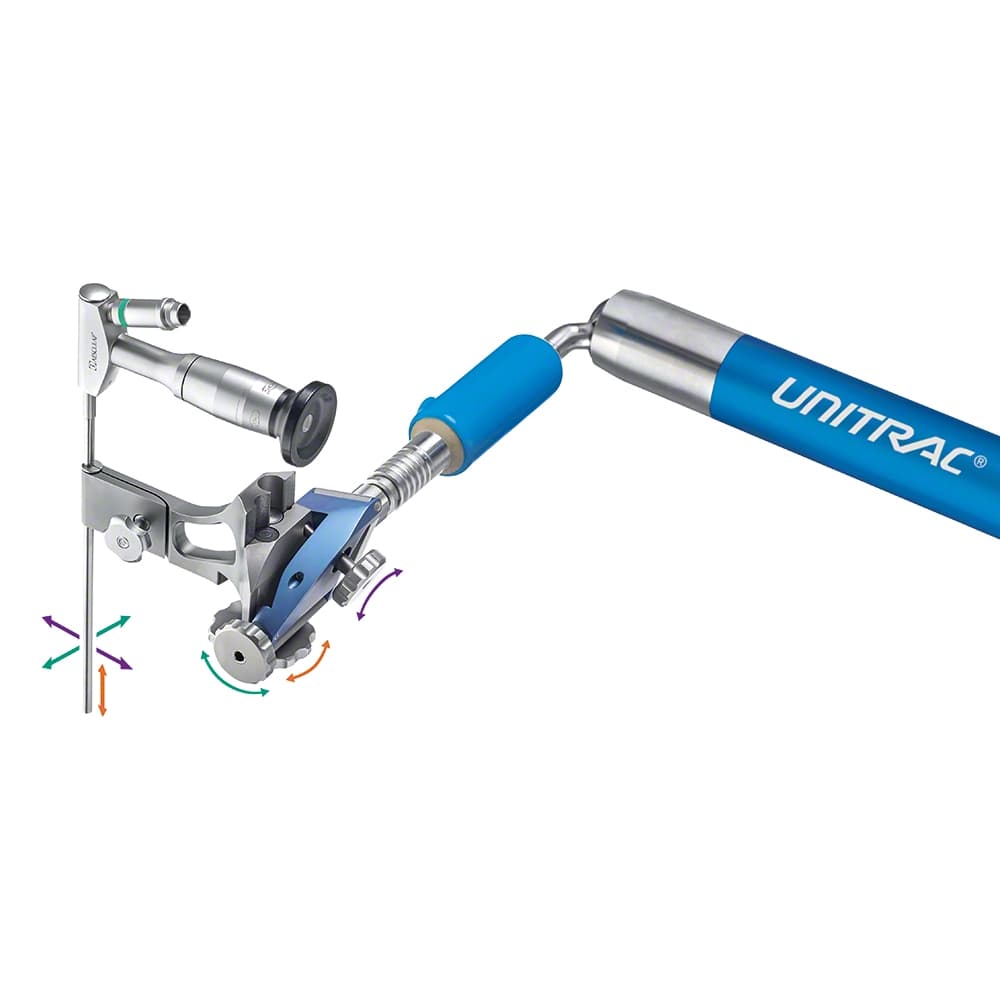

After positioning the neuroendoscope in situ, finest corrections or adjustments are necessary to receive the optimal endoscopic image. NEUROPILOT® is a mechanical fine-positioning device for the Aesculap® holding devices M-TRAC and UNITRAC®. It is designed for intraventricular neuroendoscopy and endoscope-assisted microneurosurgical procedures.
Features:
- Proper fixation of the neuroendoscope in the NEUROPILOT® and the holding device.
- Accurate manoeuvring by defined movements in the sub-millimeter area.

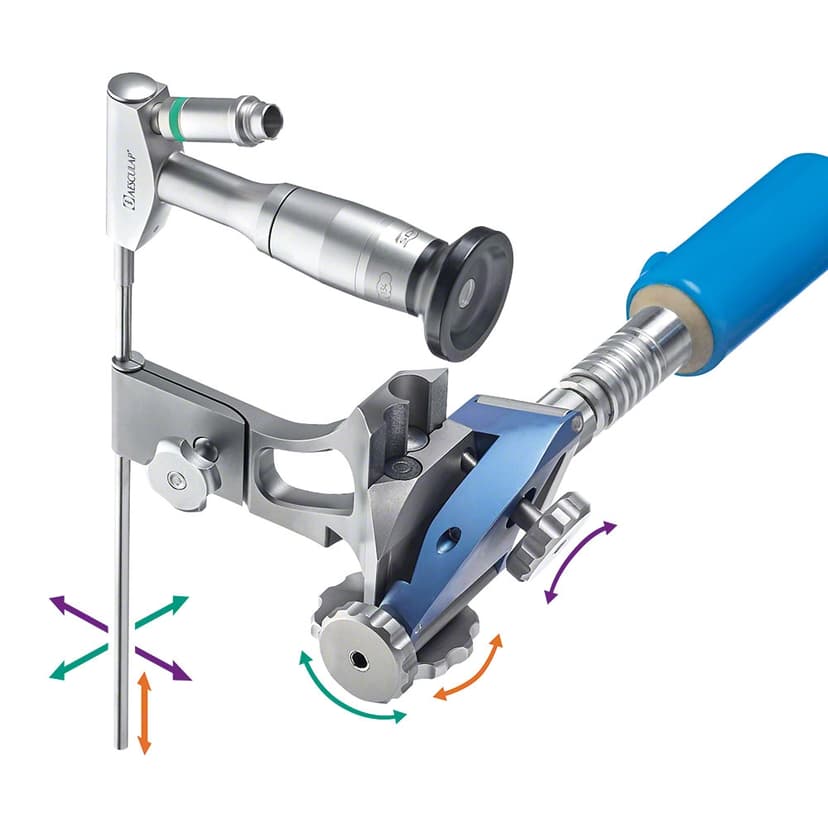

- Precise steering by three screws in the three-dimensional space.
Additional information:
Inserts for use with the different endoscopes and trocars.
