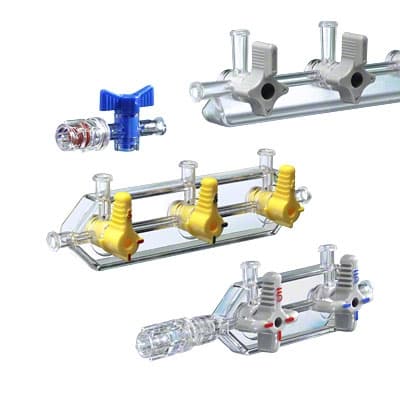

ManifoldsAngiodyn manifolds help you managing your procedure
For a wide variety of functions, including new connections to fluids, without having to disconnect existing hose connections
Connection to
- Catheter
- Saline solution
- Contrast media
- Monitoring systems
Product variants
- 2-way or 3-way manifolds
- Full and half body design
- On / Off version
- Pressure resistance 35 bar (500 psi)
- Pressure resistance 70 bar (1000 psi)
- Rotation adapter
- Transparent housing for visual inspection
- Luer lock connector male / female
- Color-coded stopcocks
For a wide variety of functions, including new connections to fluids, without having to disconnect existing hose connections
Connection to
- Catheter
- Saline solution
- Contrast media
- Monitoring systems
Product variants
- 2-way or 3-way manifolds
- Full and half body design
- On / Off version
- Pressure resistance 35 bar (500 psi)
- Pressure resistance 70 bar (1000 psi)
- Rotation adapter
- Transparent housing for visual inspection
- Luer lock connector male / female
- Color-coded stopcocks
