Universal Adapter for recording alternately an intra-vascular and surface ECG for positioning of central venous catheters

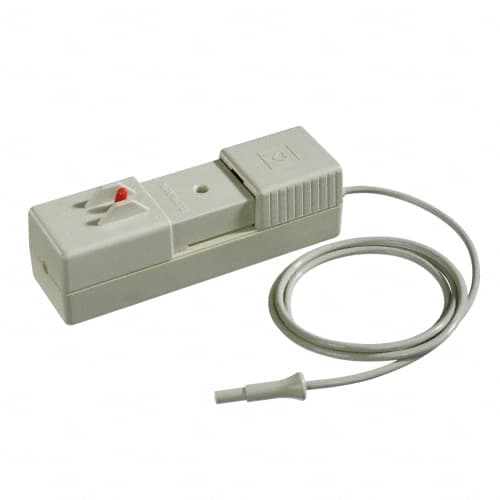

The Certodyn® Universal Adapter Paed is a switching device enabling ECG guided catheter placement based on ECG signals (P-wave = intravascular position, Elevated P-peak = intra-atrial position) with an ECG monitor.
Materials: No body contact
Connection fittings: Socket for Connecting Cable for plug-in disposable adhesive electrodes (typically used in the paediatric and neonatology setting)
The Certodyn® Universal Adapter Paed is a switching device enabling ECG guided catheter placement based on ECG signals (P-wave = intravascular position, Elevated P-peak = intra-atrial position) with an ECG monitor.
Materials: No body contact
Connection fittings: Socket for Connecting Cable for plug-in disposable adhesive electrodes (typically used in the paediatric and neonatology setting)
