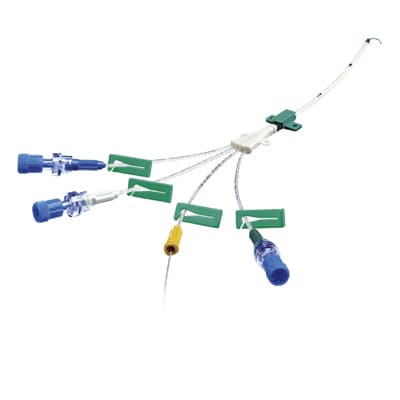

Antimicrobial modified four-lumen catheter sets for catheterization of the vena cava according to the Seldinger method with the possibility of ECG based Central Venous Catheter tip placement and position control
Set consists of:
Valve needle (V)
Kink-proof guide wire with flexible J-tip
Antimicrobially modified four-lumen catheter: Soft catheter tip / X-ray detectable, opaque / Four lumen: distal = 14 G; middle 1 = 18 G; middle 2 = 18 G; proximal = 16 G / Length markings / Color-coded Luer-Lock hubs / Fixation wings at the channel junction for securing the catheter
Movable fixation with fixation wings for catheter fixation at the puncture site
