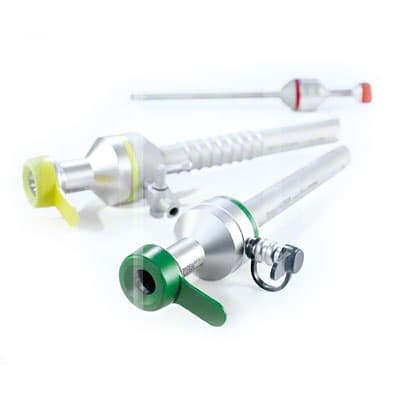

Reusable Trocar System MIT
Reusable Trocar System MITModular trocar system with silicone valve – Previous Generation
The centerpiece of the MIT trocar system is a resterilizable silicon flap valve. The modular design ensures individuality and compatibility of the single components. Particular attention was paid to the aspects instrument friction, resterilization of the components as well as economical aspects. The system is available for the diameters 5, 7, 10 and 13 mm.
Available Components
- 60, 110 and 150 mm
- Plastic Trocar Shafts
- Flexible Trocars Trocar for Mini-Laparotomy
The centerpiece of the MIT trocar system is a resterilizable silicon flap valve. The modular design ensures individuality and compatibility of the single components. Particular attention was paid to the aspects instrument friction, resterilization of the components as well as economical aspects. The system is available for the diameters 5, 7, 10 and 13 mm.
Available Components
- 60, 110 and 150 mm
- Plastic Trocar Shafts
- Flexible Trocars Trocar for Mini-Laparotomy
